Rescue Equipment

Hydraulic Rescue Tools

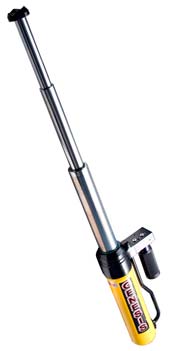

Genesis Telescopic Rams

Hydraulic rams are often used to open a car up after a head-on collision ("ram dash push"). Other common uses include "cross ramming", where the ram is put in crossways after a T-Bone collision.

The main advantage of a telescopic ram is its excellent extension range, from closed to fully open length. Because of this one telescopic ram can sometimes take the place of two push-pull rams.

Genesis telescopic rams have an Aggressive Tip Design that "digs in" and minimizes slipping. They also include Genesis' variable speed Push Button Control that allows maximum control of power.

Genesis 12/24 Ultra Mini Telescopic Ram

Mini Telescopic Ram, with super small closed length and impressive extended length.

Specifications

Weight: 20.5 lbs.
Length Closed: 11.8”
Length Open: 23.6"
Max. Force - 1st Piston: 42,615 lbs.
Max. Force - 2nd Piston: 22,275 lbs.
Operating Pressure: 10,500 psi
NFPA Compliant: Yes
Data Sheet

Genesis 16/31 Telescopic Ram

One of our most versatile rams, available with a 10" extension, giving it an extension range of 15" to 40".

Specifications

Weight: 28.4 lbs.
Length Closed: 15.5”
Length Open: 30.5"
Optional 10" Extension
Max. Force - 1st Piston: 42,615 lbs.
Max. Force - 2nd Piston: 22,275 lbs.
Operating Pressure: 10,500 psi
NFPA Compliant: Yes
Data Sheet

Play Video Video 1: Genesis16/31 Telescopic Ram

Genesis 21/46 Telescopic Ram

A mid-range telescopic ram with a range of 21” out to 46”.

Specifications

Weight: 33.3 lbs.
Length Closed: 21.3”
Length Open: 46.0”
Max. Force - 1st Piston: 42,615 lbs.
Max. Force - 2nd Piston: 22,275 lbs.
Operating Pressure: 10,500 psi
NFPA Compliant: Yes
Data Sheet

Genesis 26/59 Telescopic Ram

Our largest telescoping ram with extension up to an incredible 59".

Specifications

Weight: 40.1 lbs.
Length Closed: 25.6”
Length Open: 59.0”
Max. Force - 1st Piston: 42,615 lbs.
Max. Force - 2nd Piston: 22,275 lbs.
Operating Pressure: 10,500 psi
NFPA Compliant: Yes
Data Sheet

Genesis 19/51 Telescopic Ram
(3 Stage)

One of our most versatile rams, with a range of 19" to over 51".

Specifications

Weight: 37.9 lbs.
Length Closed: 18.9”
Length Open: 51.6”
Max. Force - 1st Piston: 60,525 lbs.
Max. Force - 2nd Piston: 29,250 lbs.
Max. Force - 3rd Piston: 10,125 lbs.
Operating Pressure : 10,500 psi
NFPA Compliant: Yes
Data Sheet

Telescopic Ram Accessories

Ram Rocker Panel Supports

Regular and large size ram supports include gripping teeth under the support to minimize slipping.
