Genesis Push-Pull Rams

Hydraulic rams are often used to open a car up after a head-on collision ("ram dash push"). Other common uses include "cross ramming", where the ram is put in crossways after a T-Bone collision.

Advantages of a push-pull ram include ability to use them for pulling, and also specialty pushing heads can be installed to increase utility, such as the Angled "V" Wedge.

Genesis push-pull rams have an Aggressive Tip Design that "digs in" and minimizes slipping. They also include Genesis' variable speed Push Button Control that allows maximum control of power.

Play Video Video 1: Genesis Push-Pull Rams

Genesis 21 Inch Push-Pull Ram

Genesis 21" Push-Pull Ram

Our smallest ram, great for displacing steering columns.

Specifications

Weight: 26.1 lbs.
Length Closed: 16.4”
Length Open: 23.4”
Operating Pressure: 10,500 psi
Max Push: 32,300 lbs.
Max Pull: 10,300 lbs.
NFPA Compliant: Yes
Data Sheet
Genesis 31 Inch Push-Pull Ram

Genesis 31" Push-Pull Ram

A small versatile ram built for tight spaces yet dash rolls are no problem.

Specifications

Weight: 30.0 lbs.
Length Closed: 20.5”
Length Open: 31.8”
Operating Pressure: 10,500 psi
Max Push: 32,300 lbs.
Max Pull: 10,300 lbs.
NFPA Compliant: Yes
Data Sheet
Genesis 41 Inch Push-Pull Ram

Genesis 41" Push-Pull Ram

Our midrange ram able to take care of a multitude of different scenarios.

Specifications

Weight: 35.7 lbs.
Length Closed: 25.4”
Length Open: 41.5”
Operating Pressure: 10,500 psi
Max Push: 32,300 lbs.
Max Pull: 10,300 lbs.
NFPA Compliant: Yes
Data Sheet

Genesis 55 Inch Push-Pull Ram

Genesis 55" Push-Pull Ram

Our longest reaching push-pull ram extends to an amazing 55".

Specifications

Weight: 50.5 lbs.
Length Closed: 36.0”
Length Open: 55.7”
Operating Pressure: 10,500 psi
Max Push: 21,900 lbs.
Max Pull: 10,300 lbs.
NFPA Compliant: Yes
Data Sheet



Push-Pull Ram Accessories

Ram Rocker Panel Supports

Ram Rocker Panel Supports

Regular and large size ram supports include gripping teeth under the support to minimize slipping.

Push-Pull Ram Accessory Kit

Slip Fit Ram Accessory Kit

Includes Patented V-Head, V-Head for Slip Fit, X-Head, 10” Extension, 3” Slip Fit Extension, Pulling Shackles & Pins, Pulling Adapters, Spanner Wrench.

Kit allows the rescuer to operate a ram with two (2) of the patented Angled V-Heads. With use of these extremely aggressive V-Heads, you can position a ram in angles not possible with regular pushing heads. The Slip Fit extension adds versatility in positioning the ram because it allows the V-Head base of the ram to rotate.

Play VideoSlip Fit Ram Accessory Kit

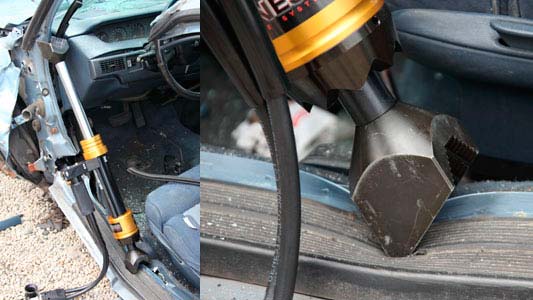

Push Pull Accessories being used
